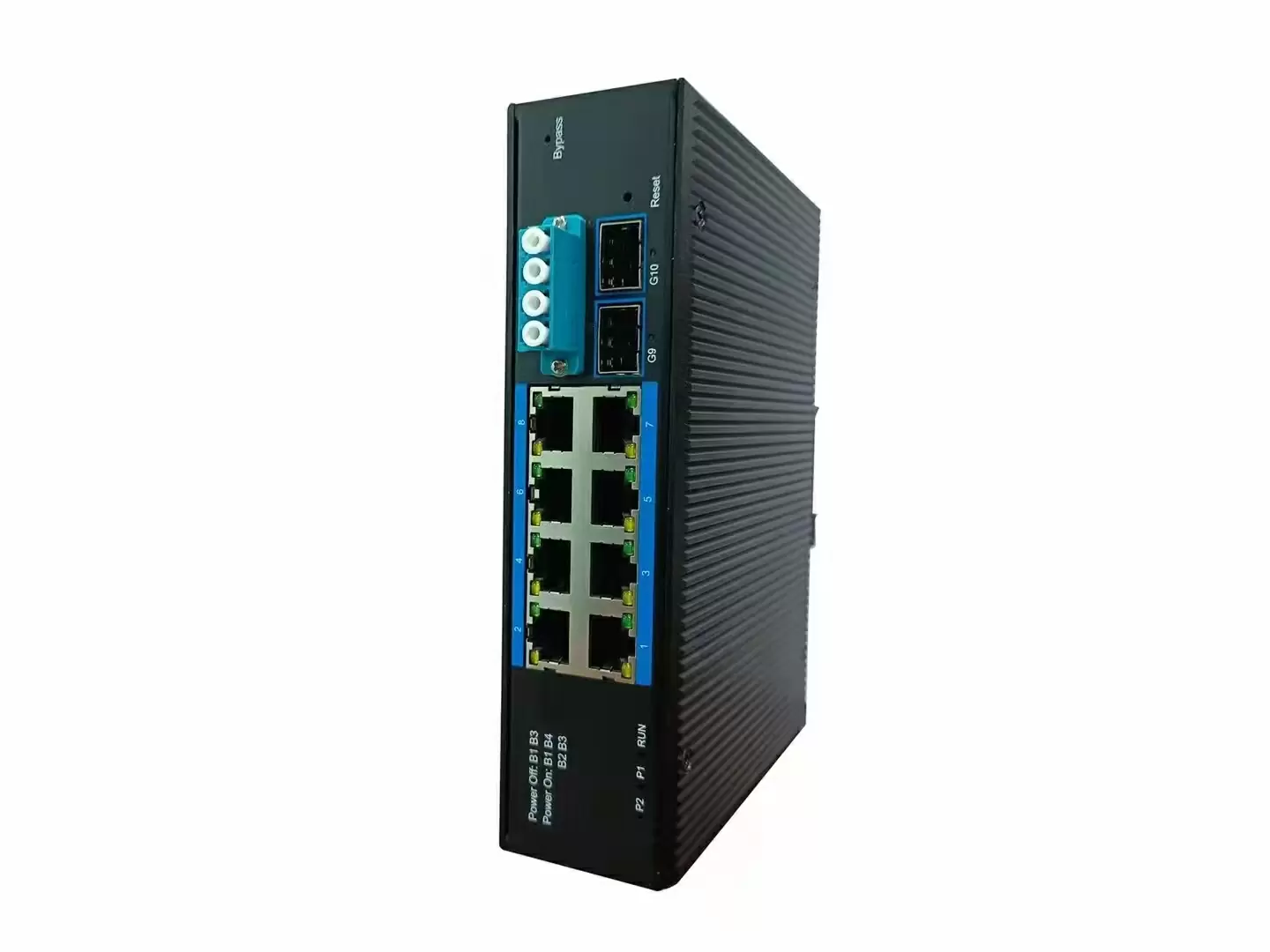

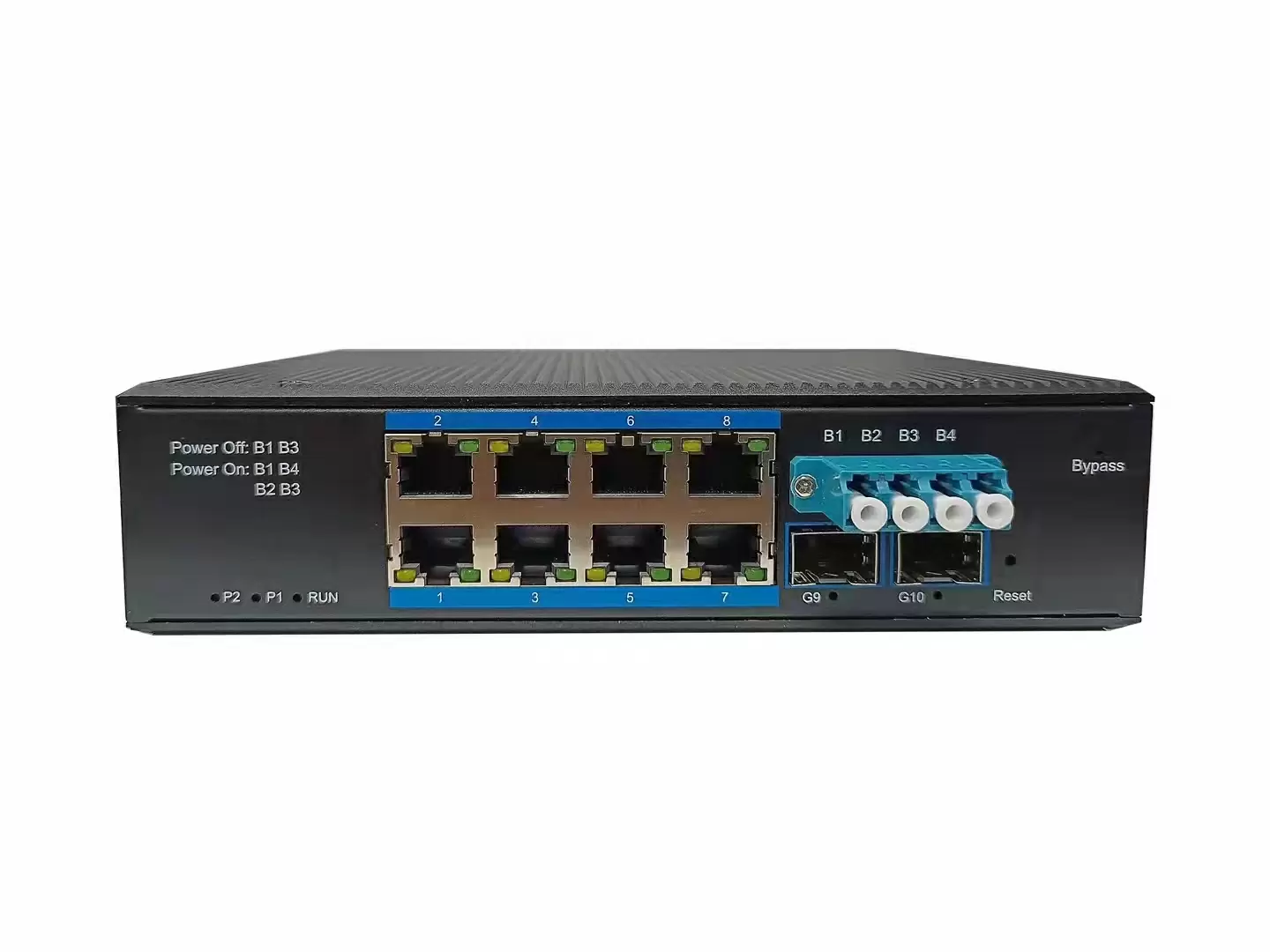

Bypass Industrial switch 8-Port Gigabit+2G SFP (Bypass is compatible with any of our switches) ZX28G-SFP-BP


ZX28G-SFP-BP

8-port 10/100/1000Mbps RJ45+2G SFP Bypass Industrial Switch


The built-in Bypass Industrial switch features low loss, high stability, and it’s an indispensable product for optical communication system monitoring and protection. and can be connected to high-density optical communication systems.  Low power consumption, fanless design, ensure no noise interference, and support -30~+75 operating temperature and good EMC electromagnetic compatibility performance, to ensure stable work in harsh industrial environment.  .



Parameters of Bypass module

-         Power interface: standard industrial terminal

-         Polarity protection: Supported

-         Optical fiber interface: SC (Single-mode single-fiber)

-         Operating voltage: DC 12-52V

-         Operating temperature: -30 ~ +75 °C

-         Storage temperature: -40 °C to +80 °C

-         Usage: built-in

-         Installation: guide rail type



Unit

Spec. of the product

wavelength coverage

nm

1260-1650

Test the wavelength

nm

1310/1550

insertion loss

dB

0.4~0.8

RL (return loss)

dB

≥50

Channel crosstalk

dB

≥55

The polarization loss

dB

≤0.05

Wavelength loss

dB

≤0.25

MBTF

No.

≥10000000

switching time

ms

≤8

Transmitted

optical power

mW

≤500

Work temperature

°C

-3075

Storage temperature

°C

-4080


Product feature



      Plug and play

      Allows low insertion loss

      Lent has a wide wavelength range

      Virtual gateway Low channel crosstalk

      Virtual Gateway IP40 Protection level

      Lends itself to a fan-free system for natural cooling

      12V to 52V DC, redundant power input

      -30 to 75 operating temperature

      IP40 aluminum housing



Application scenarios



      Switching monitoring in an optical transmission system at a cost

      Protecting and restoring optical networks at a cost

      Optical fiber sensor and network test system, device installation and tuning
