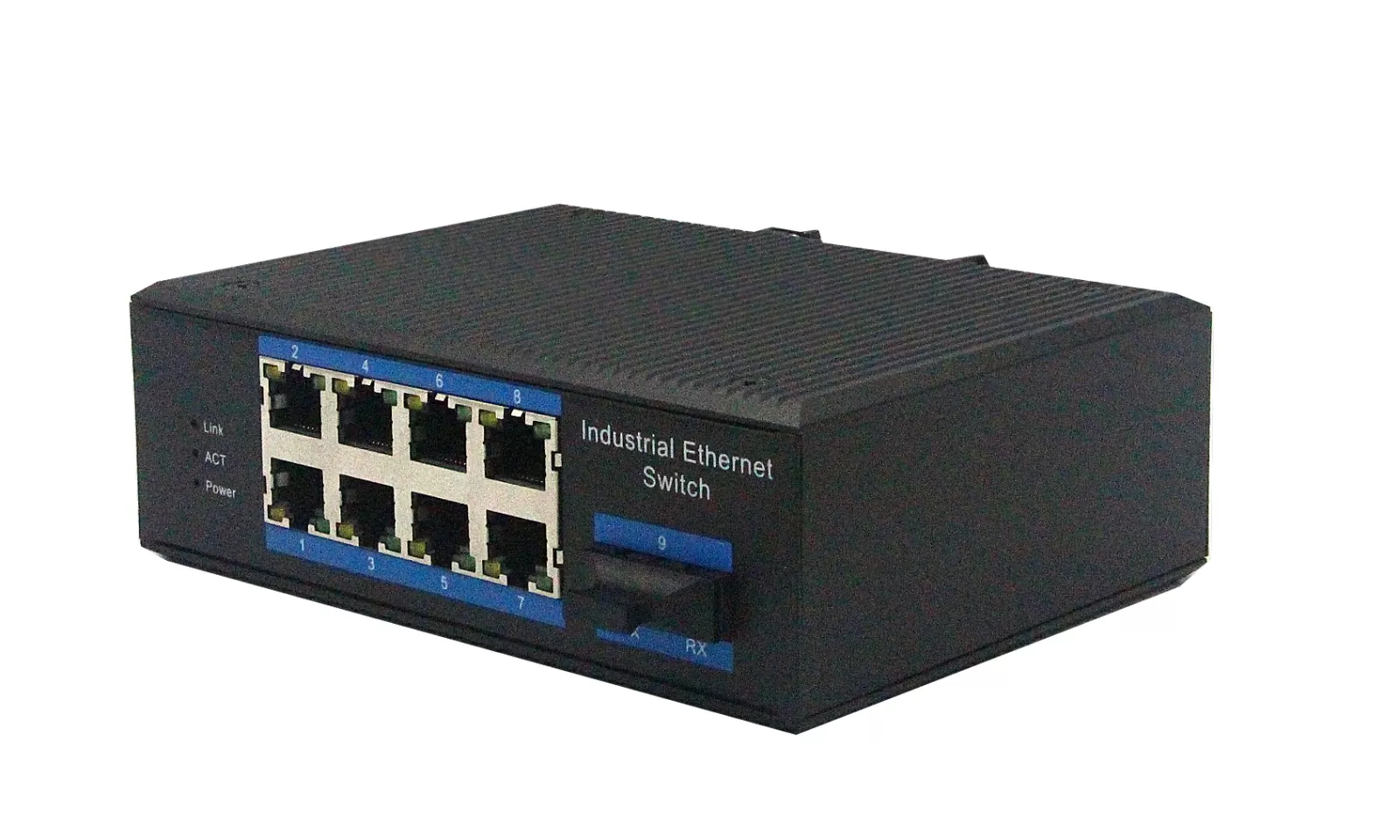

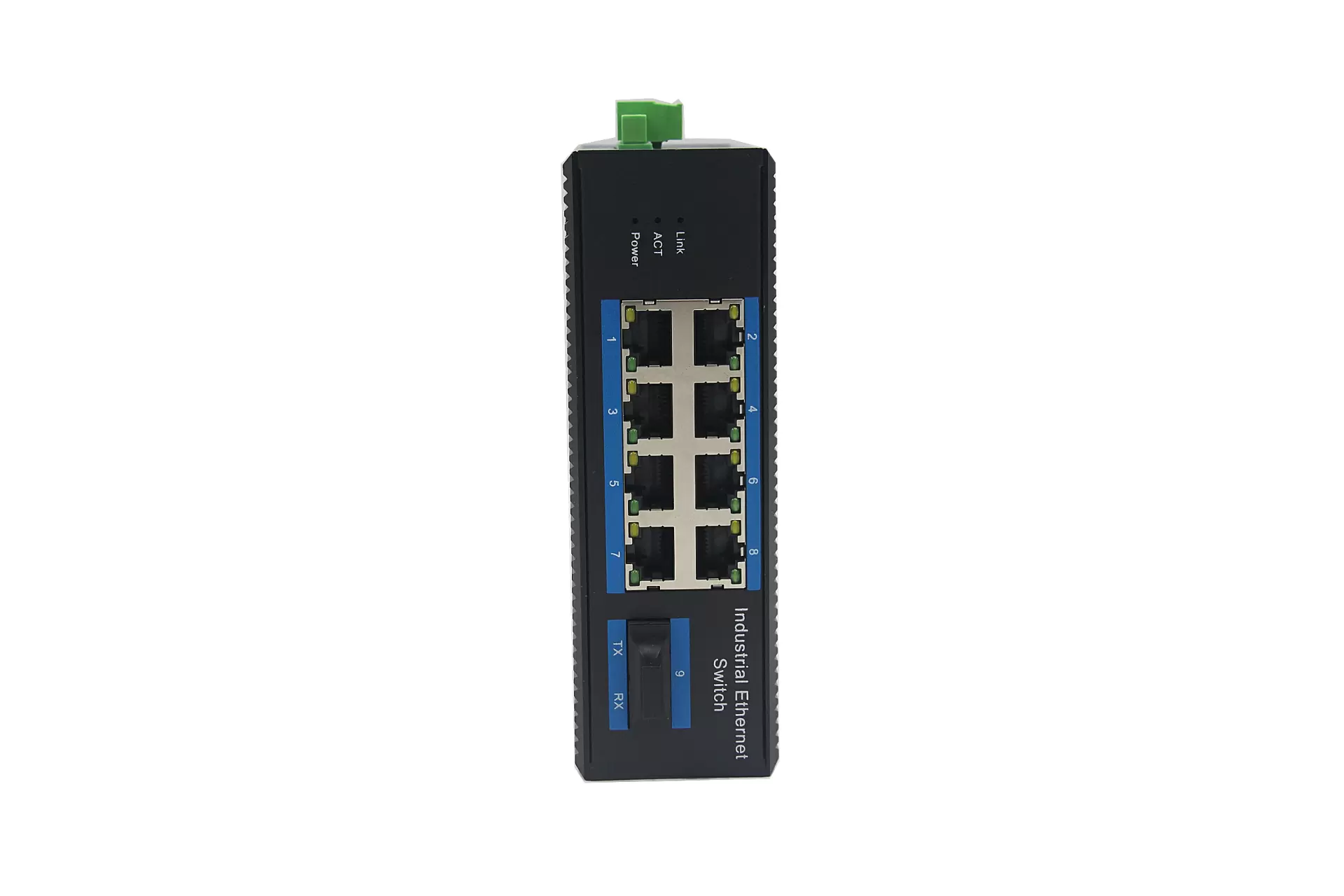

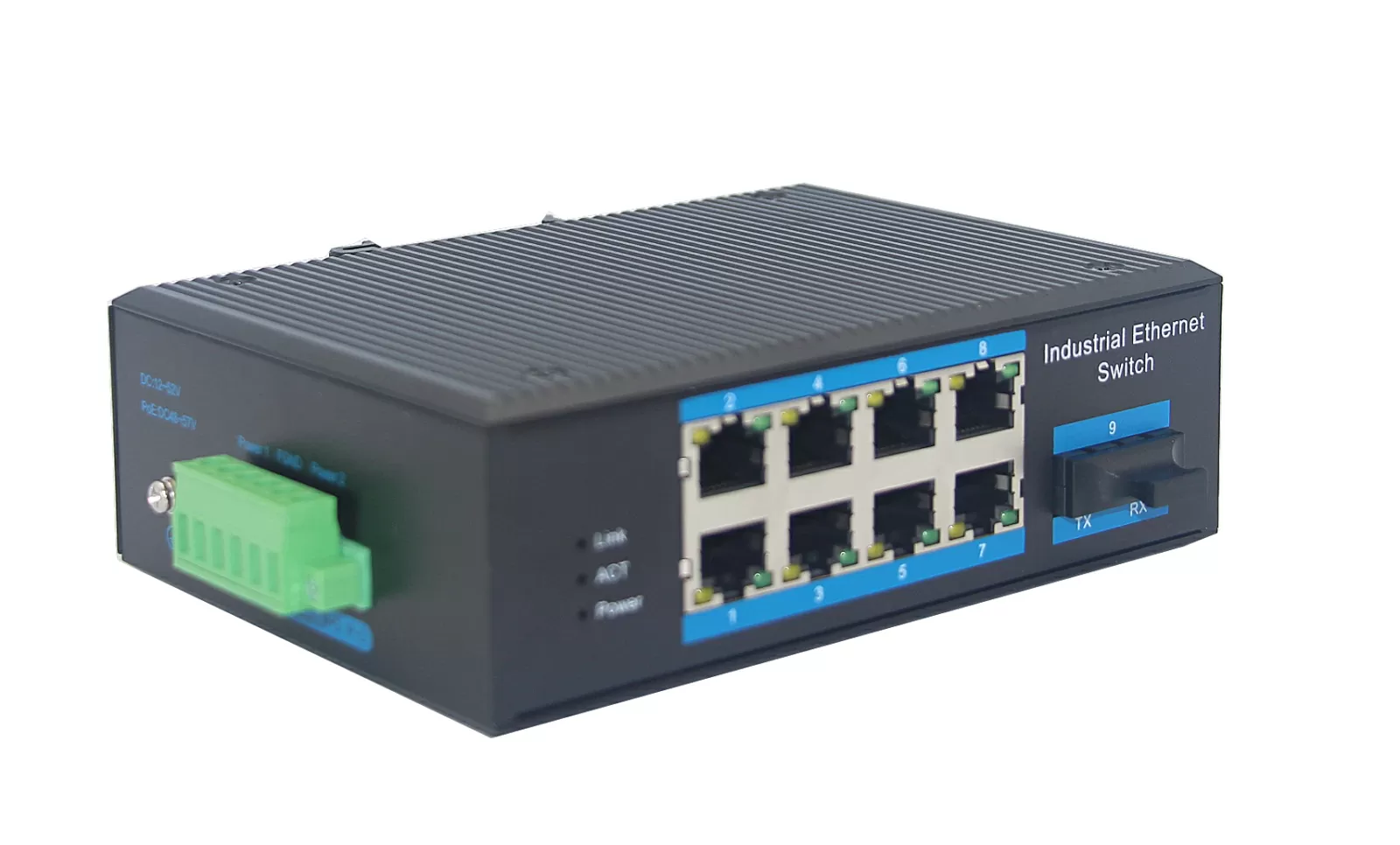

Yuhang 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the ZXR18F-SC2, up to 20km with the ZXR18F-SC20 .

The ZXR18F series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under   the temperature range from -40℃ to 85℃ allows the ZXR18F series to be placed in almost any difficult environment.

Yuhang ZXR18F series 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The ZXR18F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ45 port and performs highly stable fiber performance.

The ZXR18F series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Interface

• 8-port 10/100Base-Tx RJ45 with auto  negotiation and auto-MDI/ MDI-X  function

• 1-port 100Base-Fx interface SC/FC/ST/SFP

• Multi-Mode up to 2km

• Single-Mode up to 20km/40km/60km/80km

 Industrial conformance

• 12V to 52V DC, redundant power input

• -40℃ to 85℃ operating temperature

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

• DIN-rail and wall-mountable hardware design
