Slim Type with more Practicability and Convenience

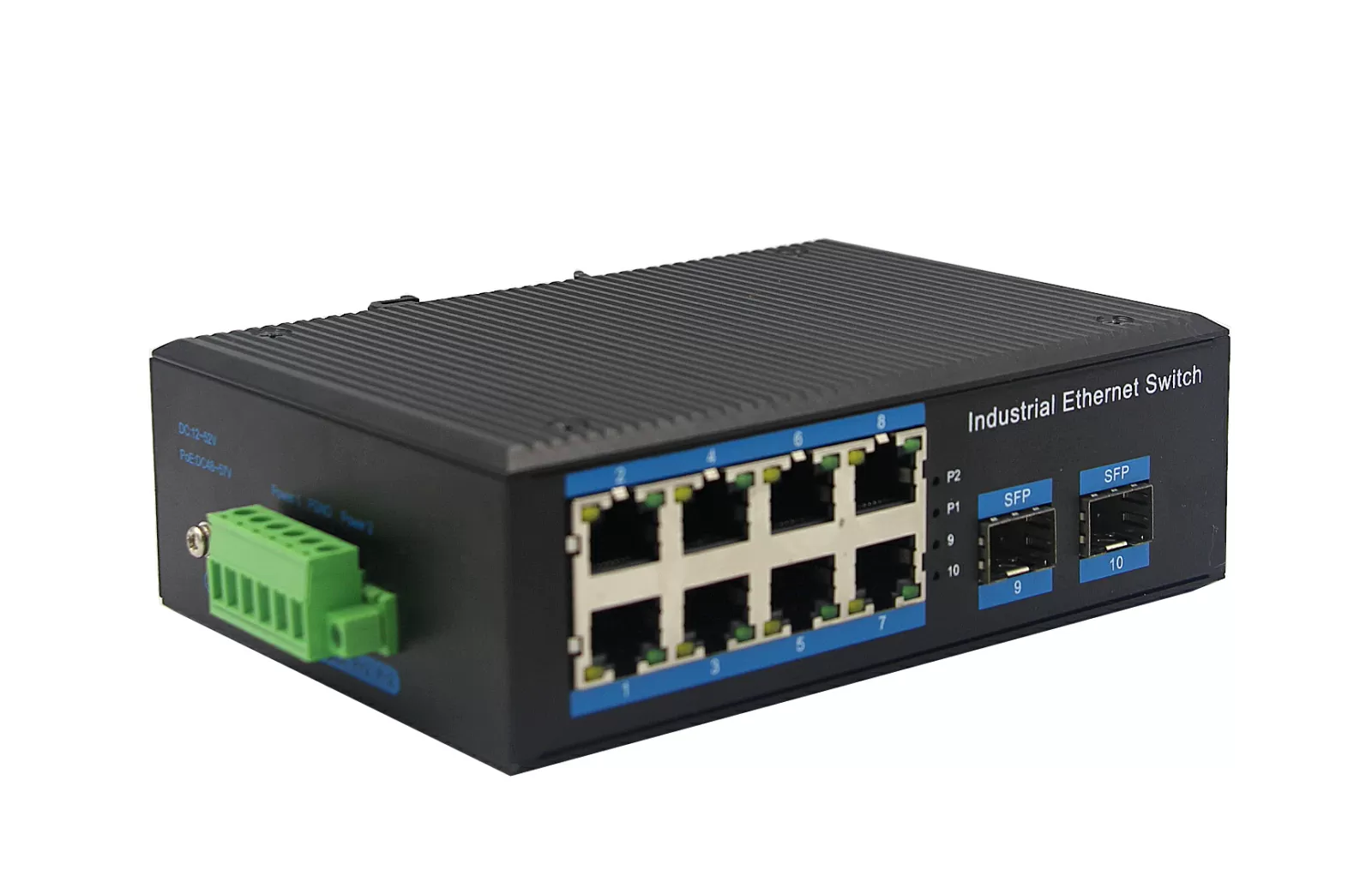

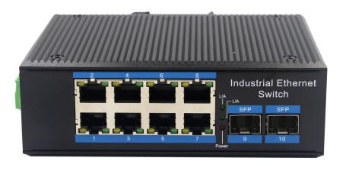

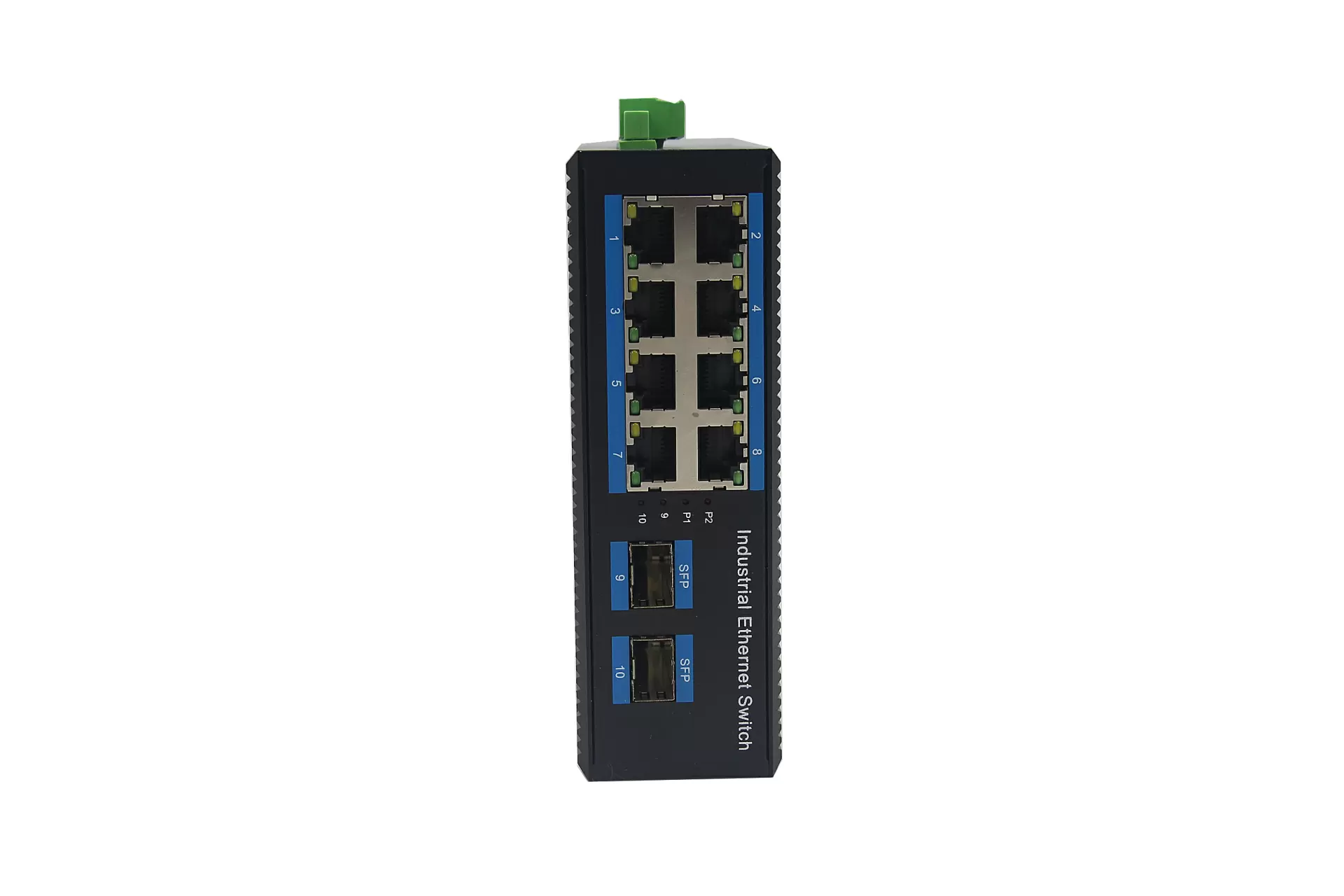

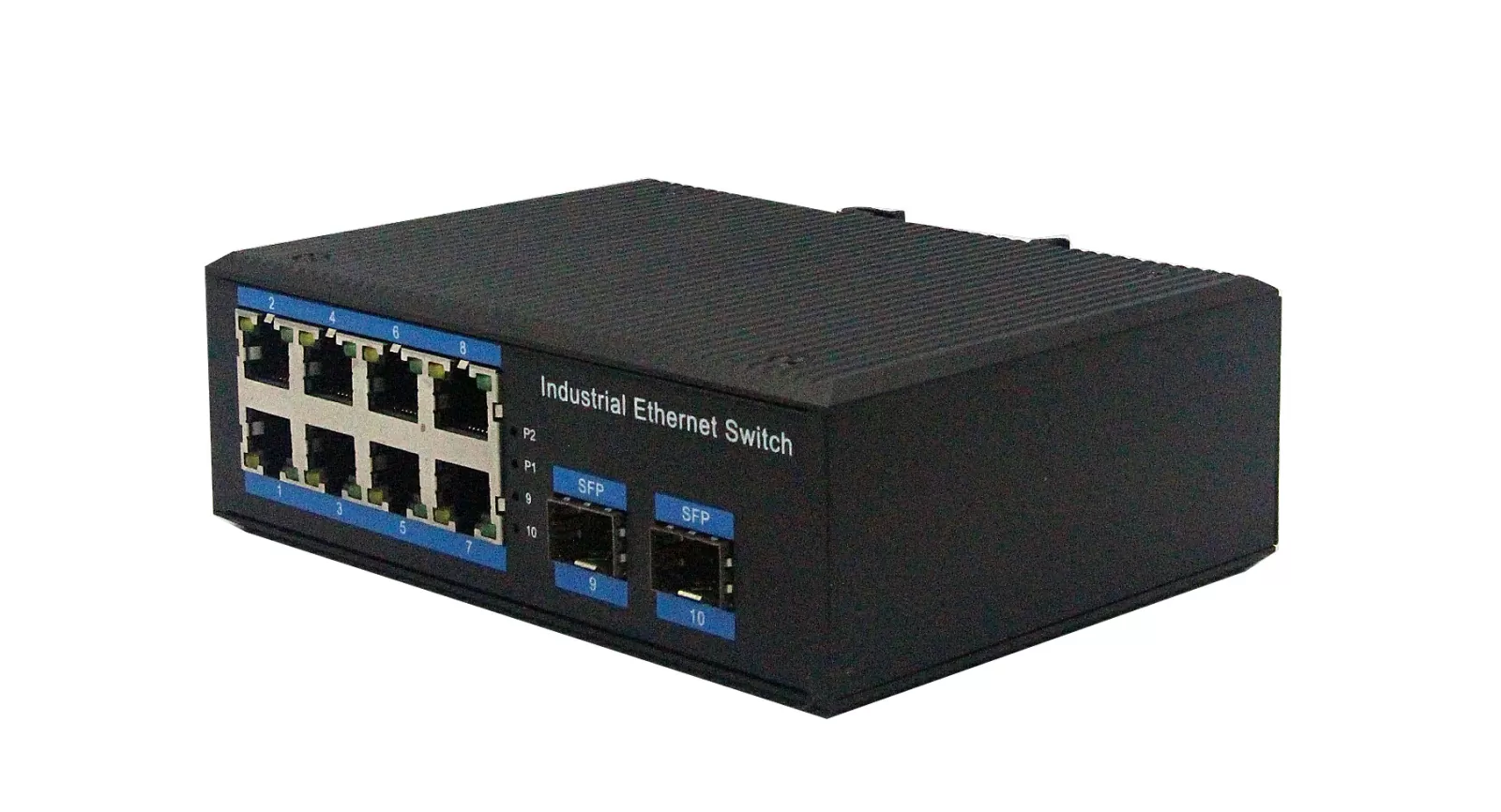

ZXD28G an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 +2-port 1000Base-Fx  delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.



The ZXD28G series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.



The ZXD28G series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Interface


• 8-port 10/100/1000Base-Tx RJ-45 with auto  negotiation and auto-MDI/ MDI-X  function

• 2-port 1000Base-Fx interface SC/FC/ST/SFP

• Multi-Mode up to 2km

• Single-Mode up to 20km/40km/60km/80km


 Industrial conformance


• 12V to 52V DC, redundant power input

• -40℃ to 85℃ operating temperature

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

• DIN-rail and wall-mountable hardware design


Specifications:


Model No.ZXD28G-SC2 / ZXD28G-SC20 / ZXD28G-SFP
10/100/1000Base-TX Port8 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port

ZXD28G-SC2: 2 SC interface

ZXD28G-SC20: 2 SC Interface

ZXD28G-SFP: 2 SFP Slot

 Fiber Port TypeZXD28G-SC2: SC / multi-mode ,up to distance 2km ;ZXD28G-SC20: SC / single-mode ,up to distance 20km ;ZXD28G-SFP: Vary on module
 Optical FrequencyZXD28G-SC2: 1310nmZXD28G-SC20: 1310nmZXD28G-SFP:  Vary on module
 Performance SpecificationBandwidth: 20GbpsPacket Buffer Memory:2MbitPacket Forwarding Rate:15MppsMAC Address Table: 8K

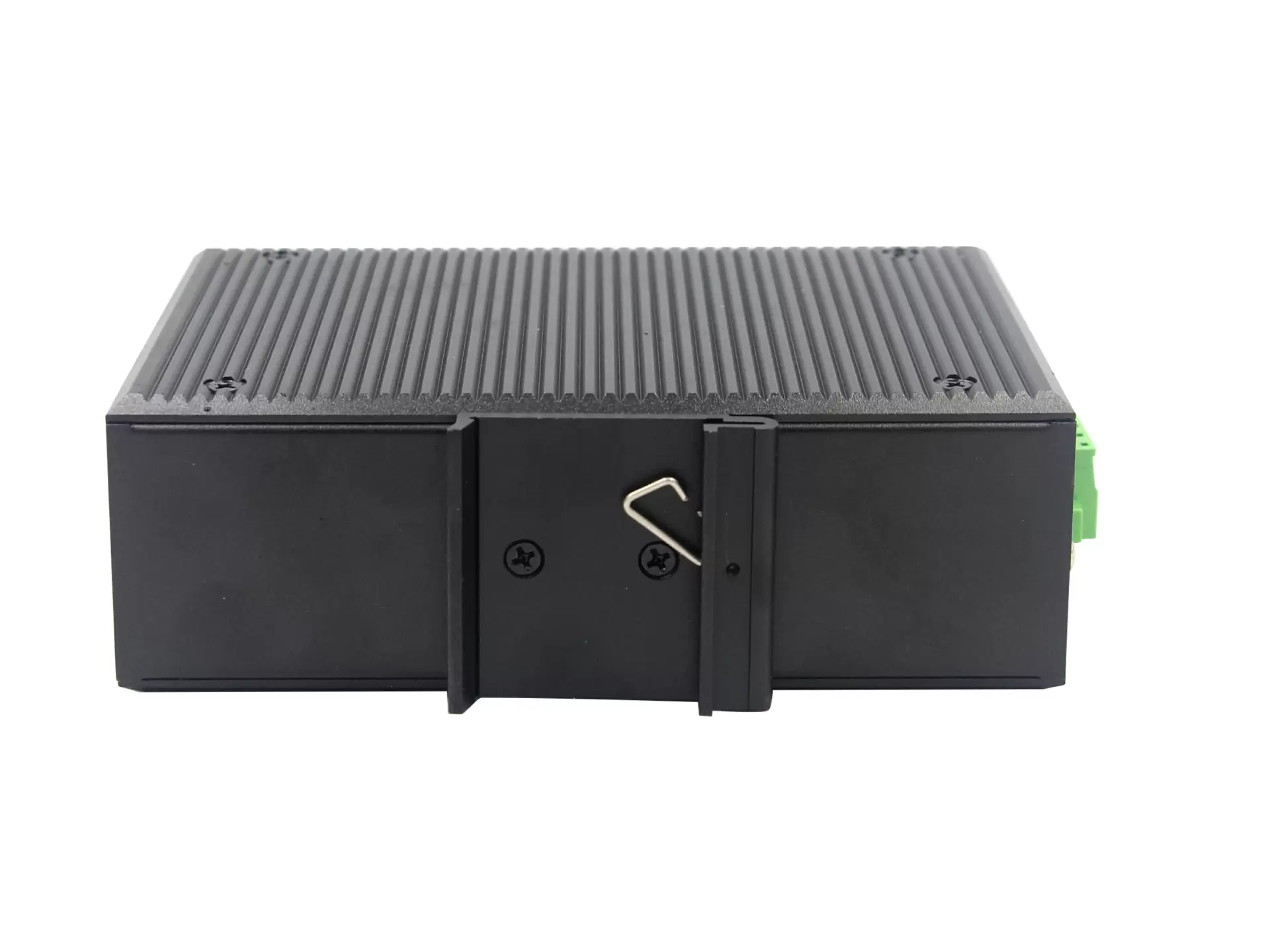

InstallationDIN rail
Maximum Frame Size9000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing

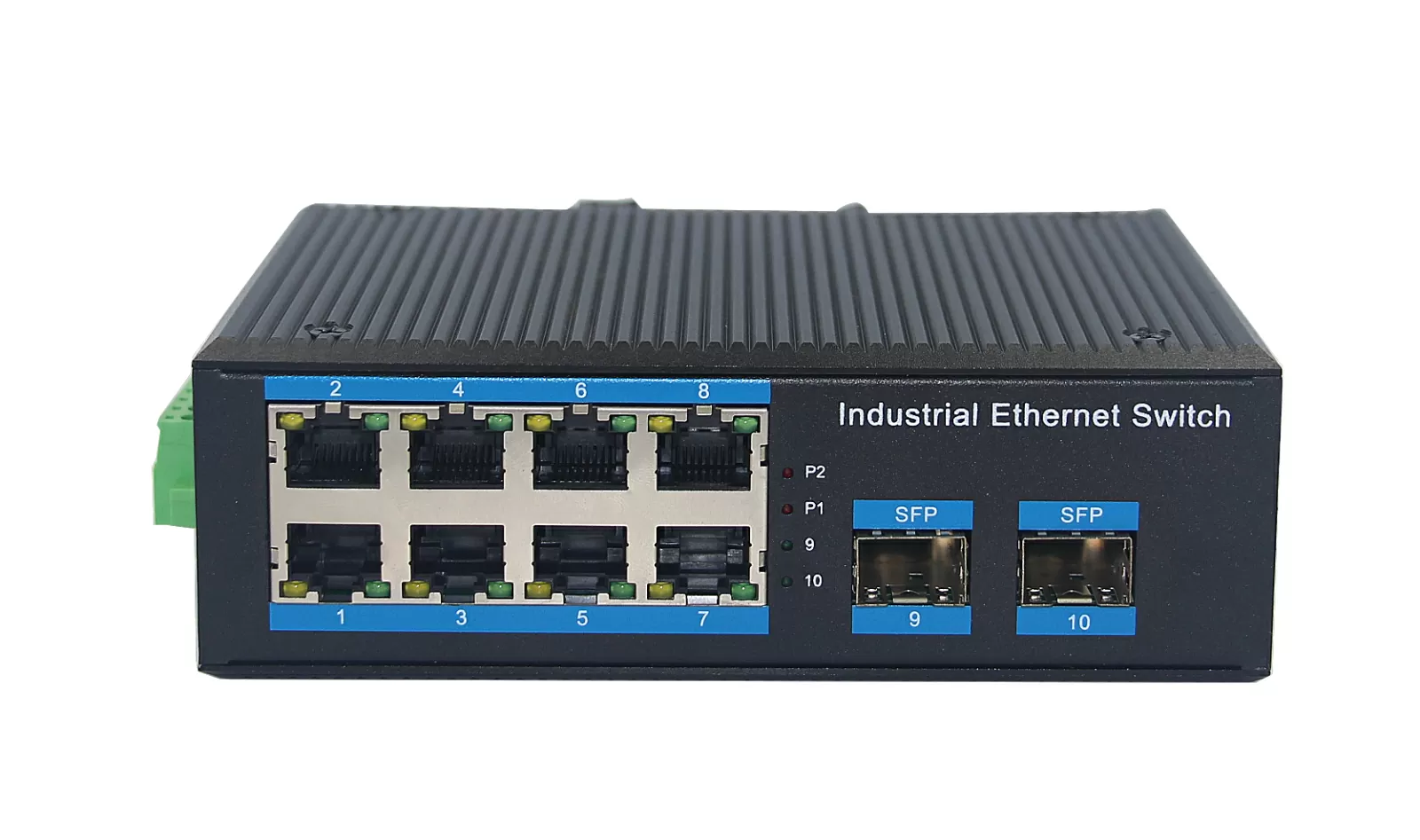

 LED IndicatorPower: RedFiber: Link 2(Green)Ethernet: Yellow

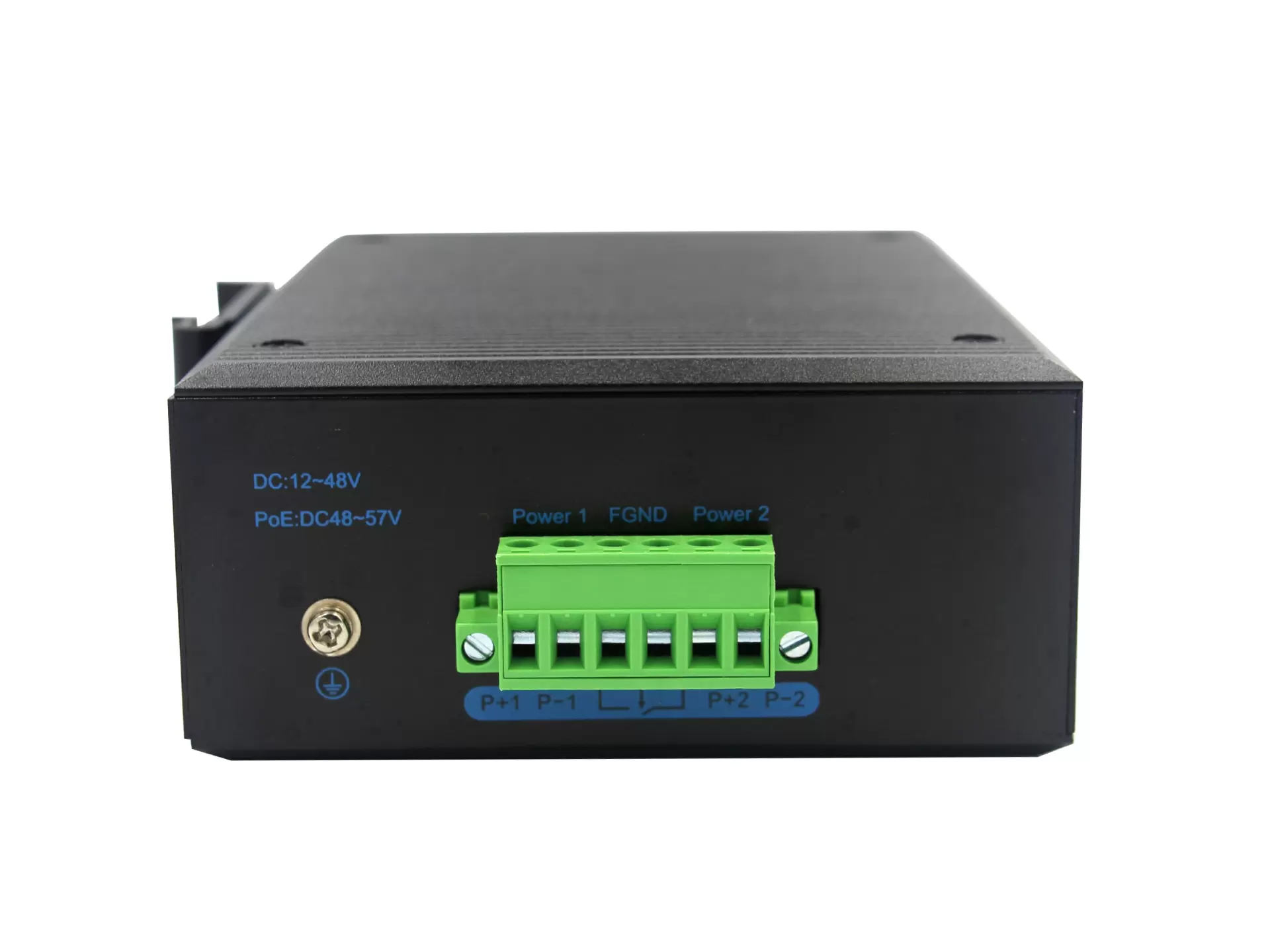

Power Input12 to 52V DC redundant power
Power Consumption< 3 watts
Surge protection±4KV
 Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T;  IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables10BASE-T: Cat3,4,5 UTP(≤100 meter)     100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter)
  Industry StandardFCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
CertificationCE FCC Rohs compliance
MTBF>300,000hours
Dimensions (W x D x H)143.7 x 103 x 44.2 mm
WeightProduct Weight: 0.56KGPacking Weight: 0.66KG
Working Environment Working temperature: -40～85℃ ;  Storage temperature: -40～85℃Relative Humidity: 5%~95 %( no condensation)
Warranty1-year replacement with new item; 3-years for main parts.
