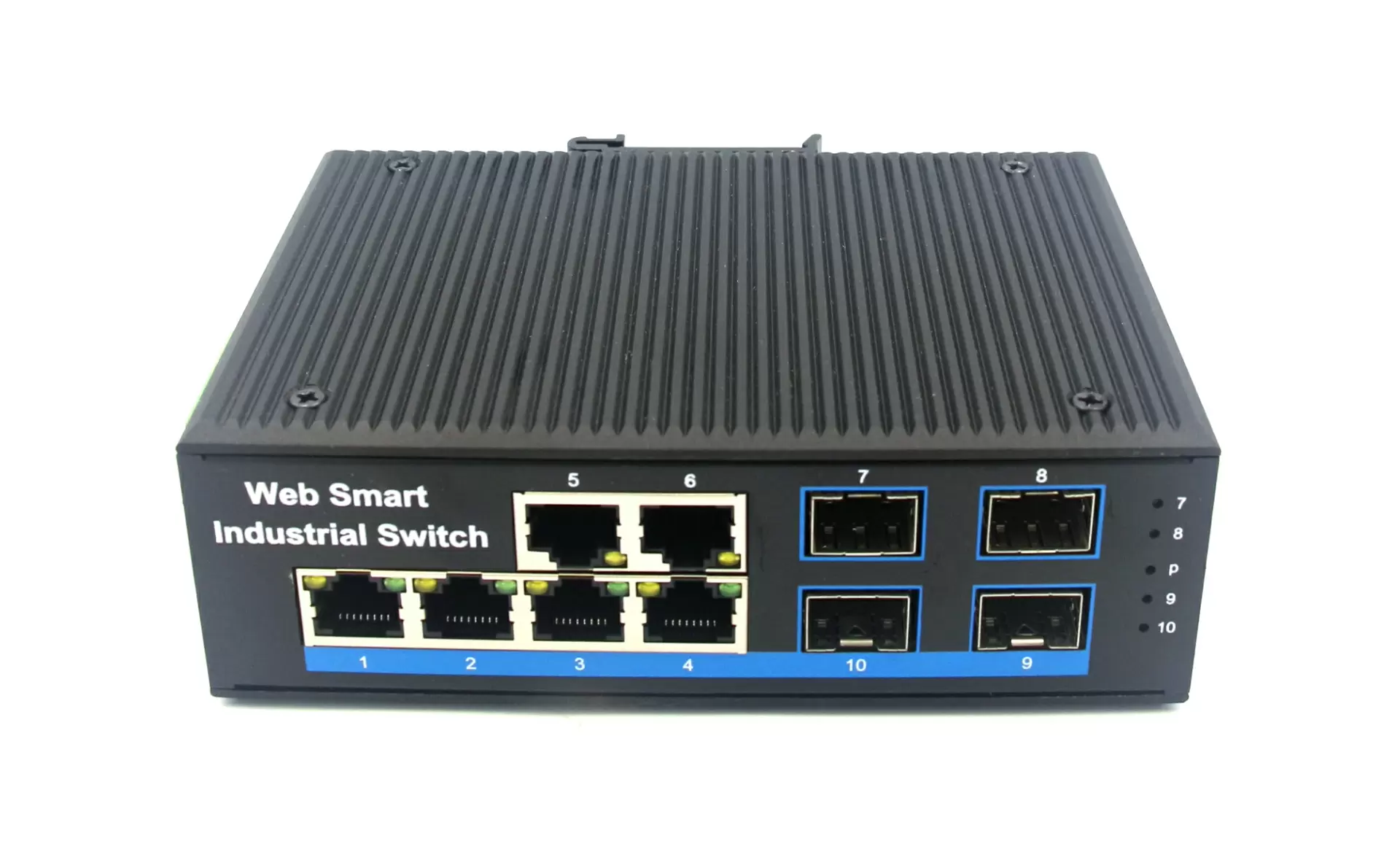

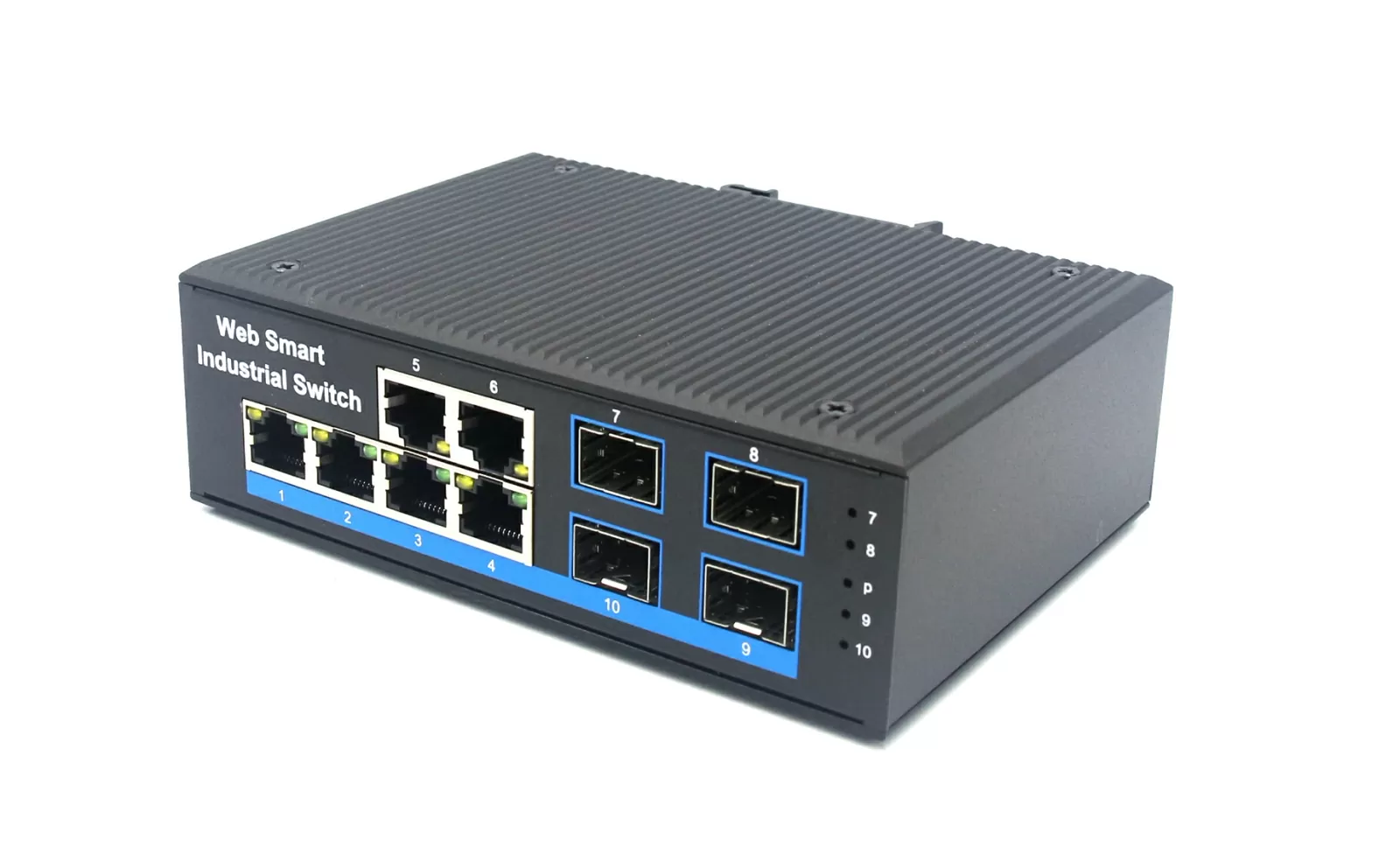

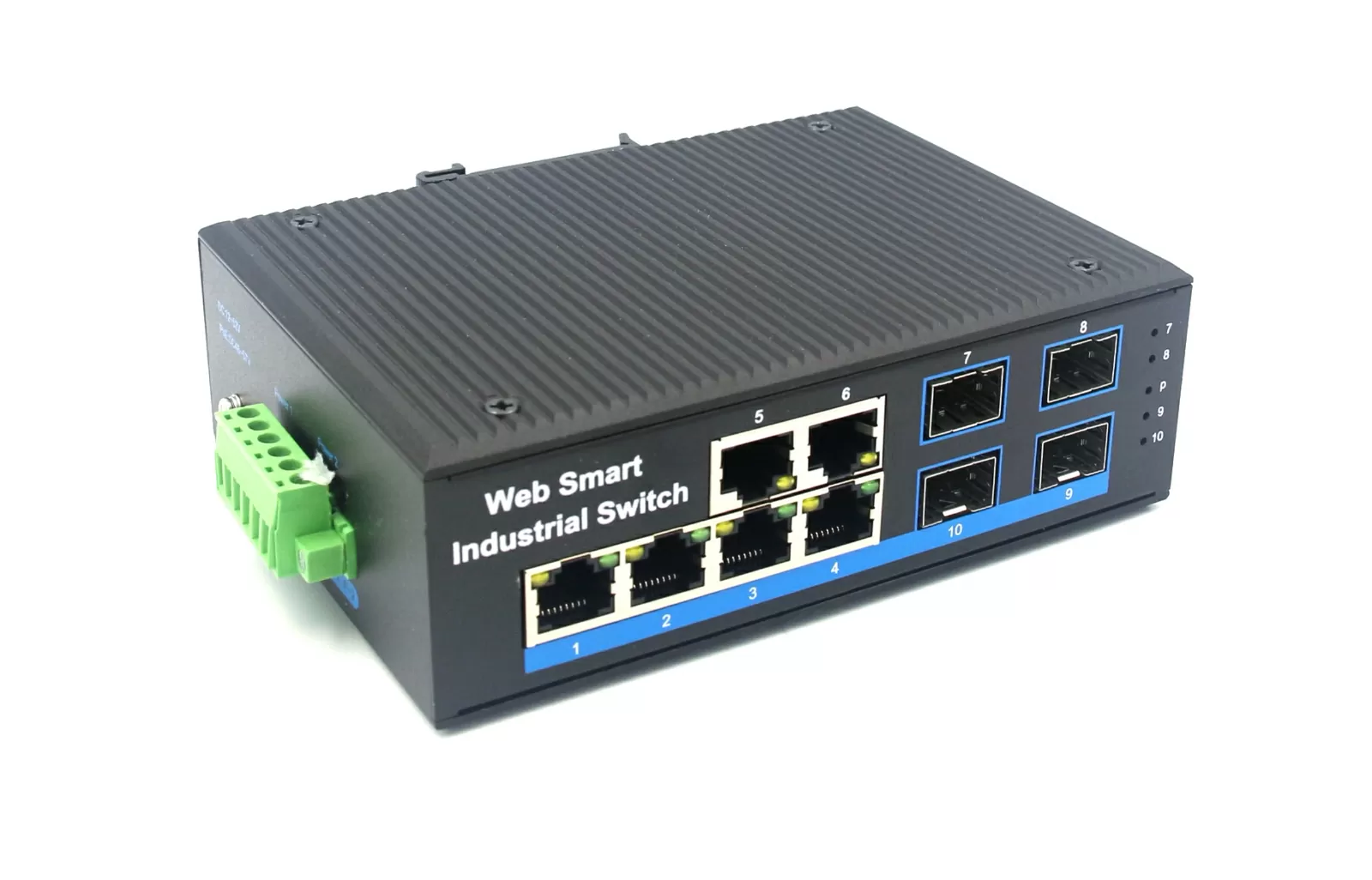

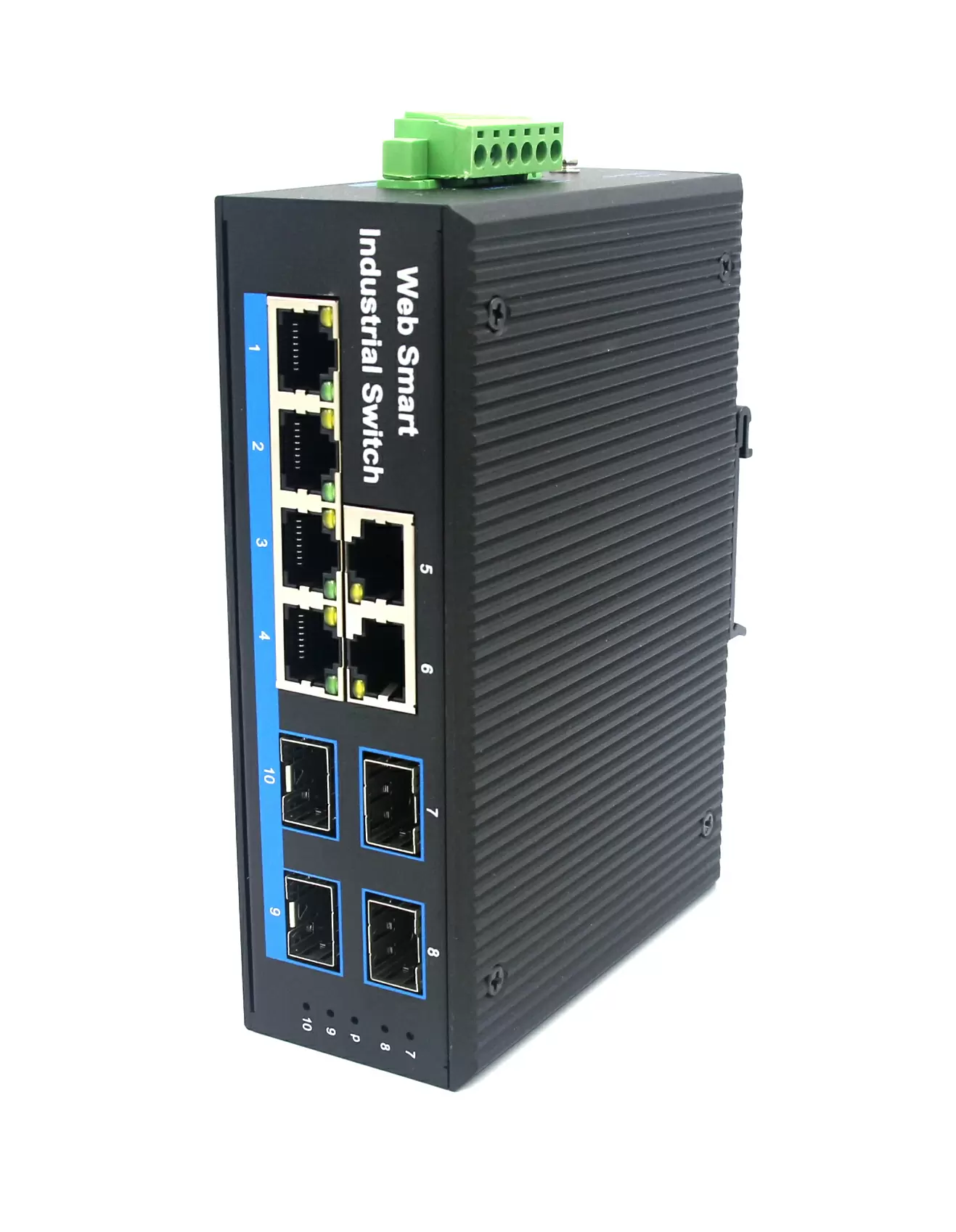

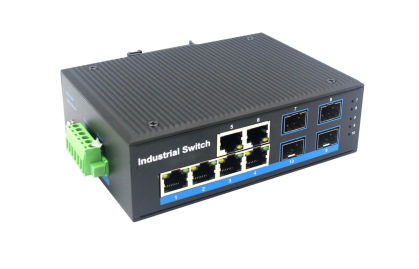

Hardended IP40 Industrial grade 6-port gigabit RJ45+4-port SFP Industrial Ethernet PoE Switch ZXD46G-SFP

‹

›

‹

  • Hardended IP40 Industrial grade 6-port gigabit RJ45+4-port SFP Industrial Ethernet PoE Switch ZXD46G-SFP
  • Hardended IP40 Industrial grade 6-port gigabit RJ45+4-port SFP Industrial Ethernet PoE Switch ZXD46G-SFP
  • Hardended IP40 Industrial grade 6-port gigabit RJ45+4-port SFP Industrial Ethernet PoE Switch ZXD46G-SFP
  • Hardended IP40 Industrial grade 6-port gigabit RJ45+4-port SFP Industrial Ethernet PoE Switch ZXD46G-SFP
  • Hardended IP40 Industrial grade 6-port gigabit RJ45+4-port SFP Industrial Ethernet PoE Switch ZXD46G-SFP
  • Hardended IP40 Industrial grade 6-port gigabit RJ45+4-port SFP Industrial Ethernet PoE Switch ZXD46G-SFP

›


ZXD46G Series

6-port 10/100/1000BASE-TX+4-port 1000Base-FX Industrial Ethernet Switch


Slim Type with more Practicability and Convenience

ZXD46G an hardened 6-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 6-port 10/100/1000BASE-TX RJ45 +4-port 1000Base-Fx  delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.



The ZXD46G series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.


The ZXD46G series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


   Interface

•      6-port 10/100/1000Base-Tx RJ-45 with auto  negotiation and auto-MDI/ MDI-X  function

•      4-port 1000Base-Fx interface SC/FC/ST/SFP

•      Multi-Mode up to 2km

•      Single-Mode up to 20km/40km/60km/80km

Industrial conformance

•      12V to 52V DC, redundant power input

•      -40℃ to 80℃ operating temperature

•      IP40 aluminum housing

•      Supports 6KV DC Ethernet ESD protection

•      Supports 6KV DC EFT protection for power line

•      Free Fall, Shock and Vibration Stability

•      DIN-rail and wall-mountable hardware design



Specifications:

Model No.

ZXD46G-SC2   / ZXD46G-SC20 / ZXD46G-SFP

10/100/1000Base-TX Port

6 port RJ-45 auto-MDI / MDI-X

1000Base-FX Port

ZXD46G-SC2: 4 SC interface

ZXD46G-SC20: 4 SC Interface

ZXD46G-SFP: 4 SFP Slot



Fiber Port Type

ZXD46G-SC2: SC / multi-mode ,up to distance 2km   ;

ZXD46G-SC20: SC / single-mode ,up to distance   20km ;

ZXD46G-SFP: Vary on module



Optical Frequency

ZXD46G-SC2: 1310nm

ZXD46G-SC20: 1310nm

ZXD46G-SFP:  Vary on module



Performance   Specification

  Bandwidth: 20Gbps
  Packet Buffer Memory:2Mbit
  Packet Forwarding Rate:15Mpps
  MAC Address Table: 8K

Installation

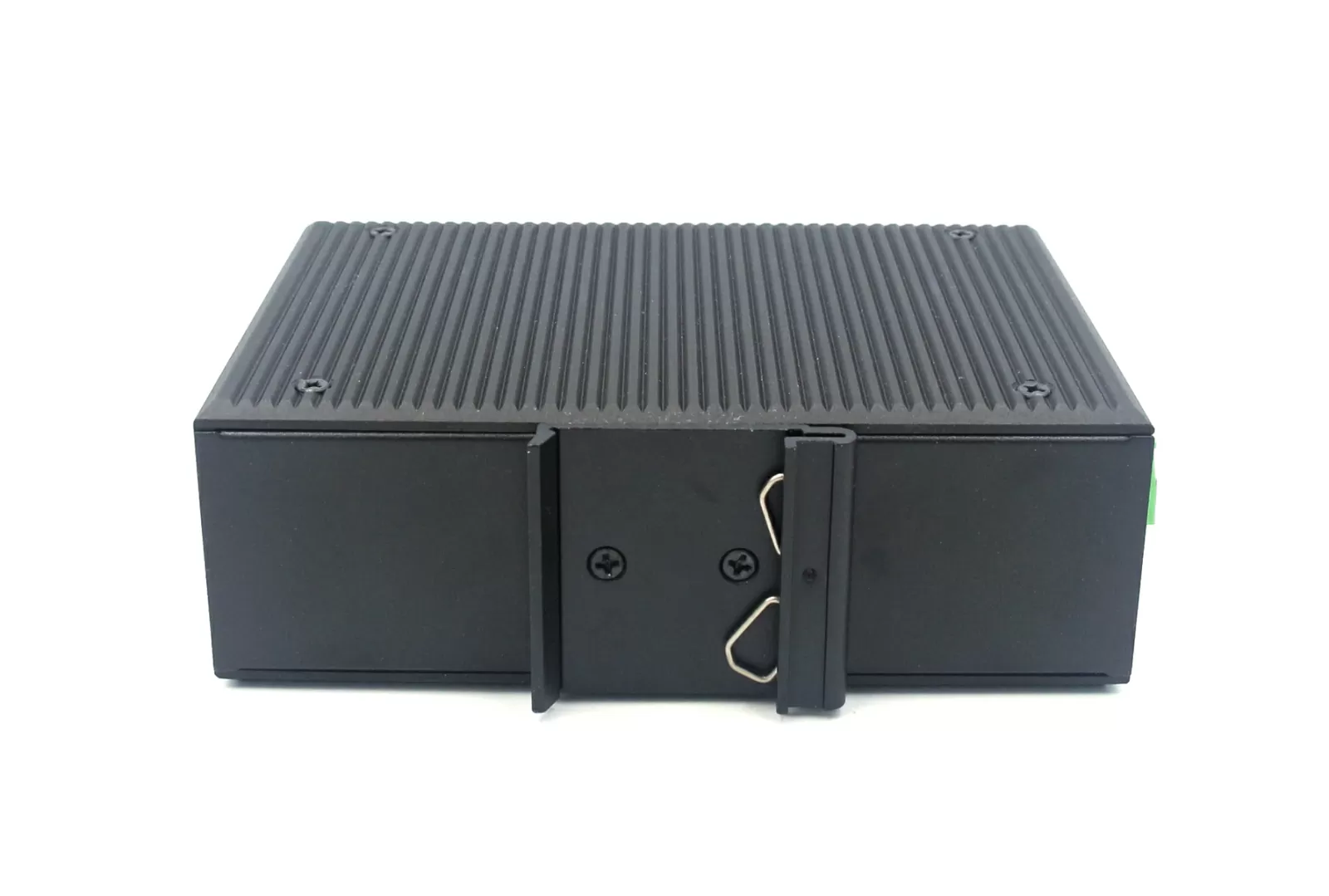

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half   duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing



LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

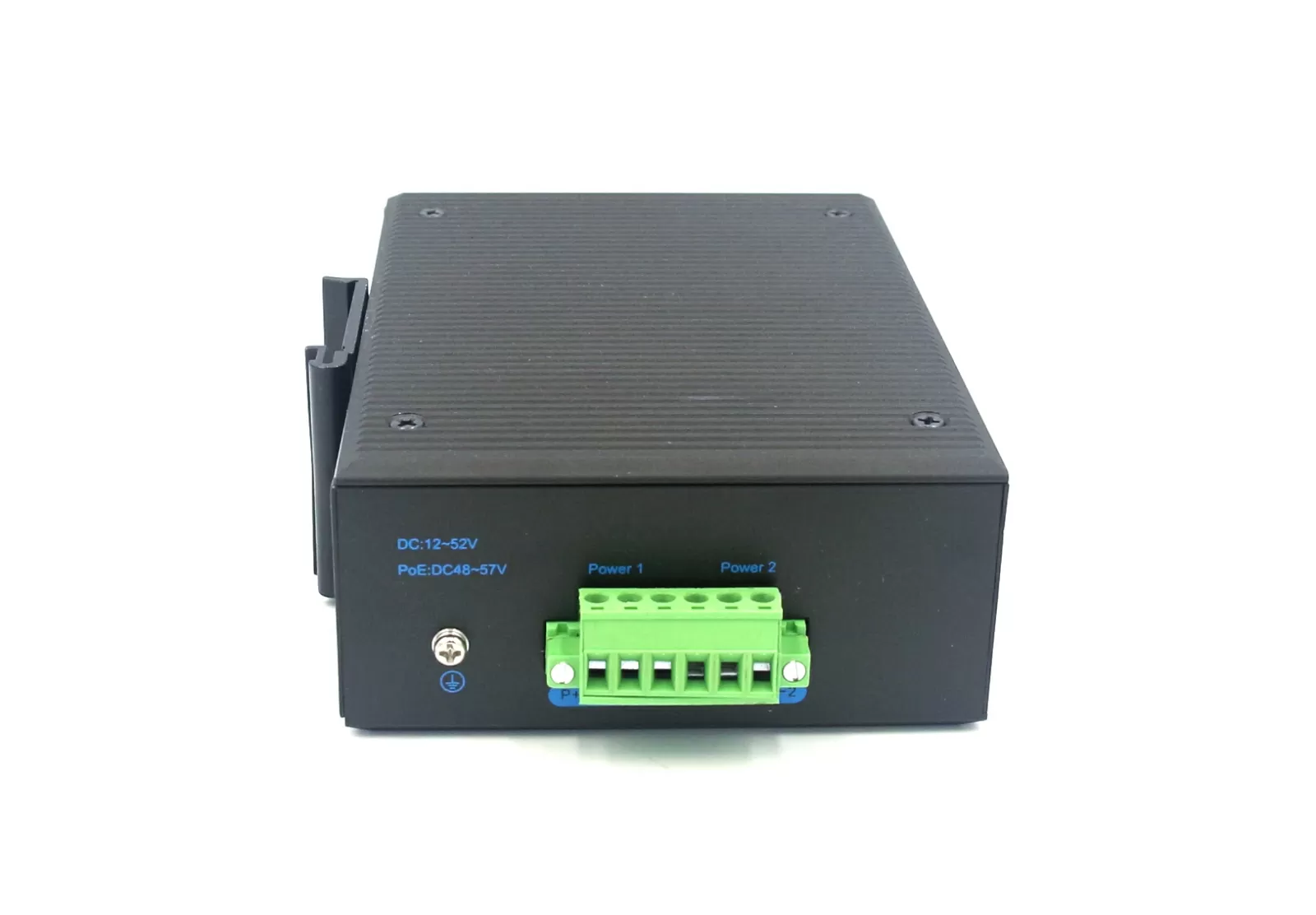

Power Input

12 to 52V DC redundant power

Power Consumption

< 3 watts

Surge protection

±4KV



Network Protocols

IEEE802.3   10BASE-T;

IEEE802.3i   10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab   1000Base-T;

IEEE802.3z   1000Base-X;

IEEE802.3x;

Network   cables

10BASE-T:   Cat3,4,5 UTP(≤100 meter)

100BASE-TX:   Cat5 or later UTP(≤100meter)

1000BASE-TX:   Cat6 or later UTP(≤100 meter)





Industry Standard

FCC   CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2   (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3   (RS): 10V/m (80~1000MHz)

IEC61000-4-4   (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5   (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6   (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16   (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE   FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

143.7   x 103.8 x 47.7 mm

Weight

Product   Weight: 0.52KG

Packing   Weight: 0.62KG

Working   Environment



Working   temperature: -40～80℃ ;

Storage   temperature: -40～80℃

Relative   Humidity: 5%~95 %( no condensation)

Warranty

1-year   replacement with new item; 3-years for main parts.


Ordering Information

ZXD46G-SC2

6-port 10/100/1000BASE-TX+4-port 1000Base-FX   Industrial Ethernet Switch

Multi-Mode (1310nm) ,Duplex,SC 2km

ZXD46G-SC20

6-port 10/100/1000BASE-TX+4-port 1000Base-FX   Industrial Ethernet Switch

Single-Mode (1310nm) ,Dual,SC 20km

ZXD46G-SFP

6-port 10/100/1000BASE-TX+4-port SFP Industrial   Ethernet Switch
