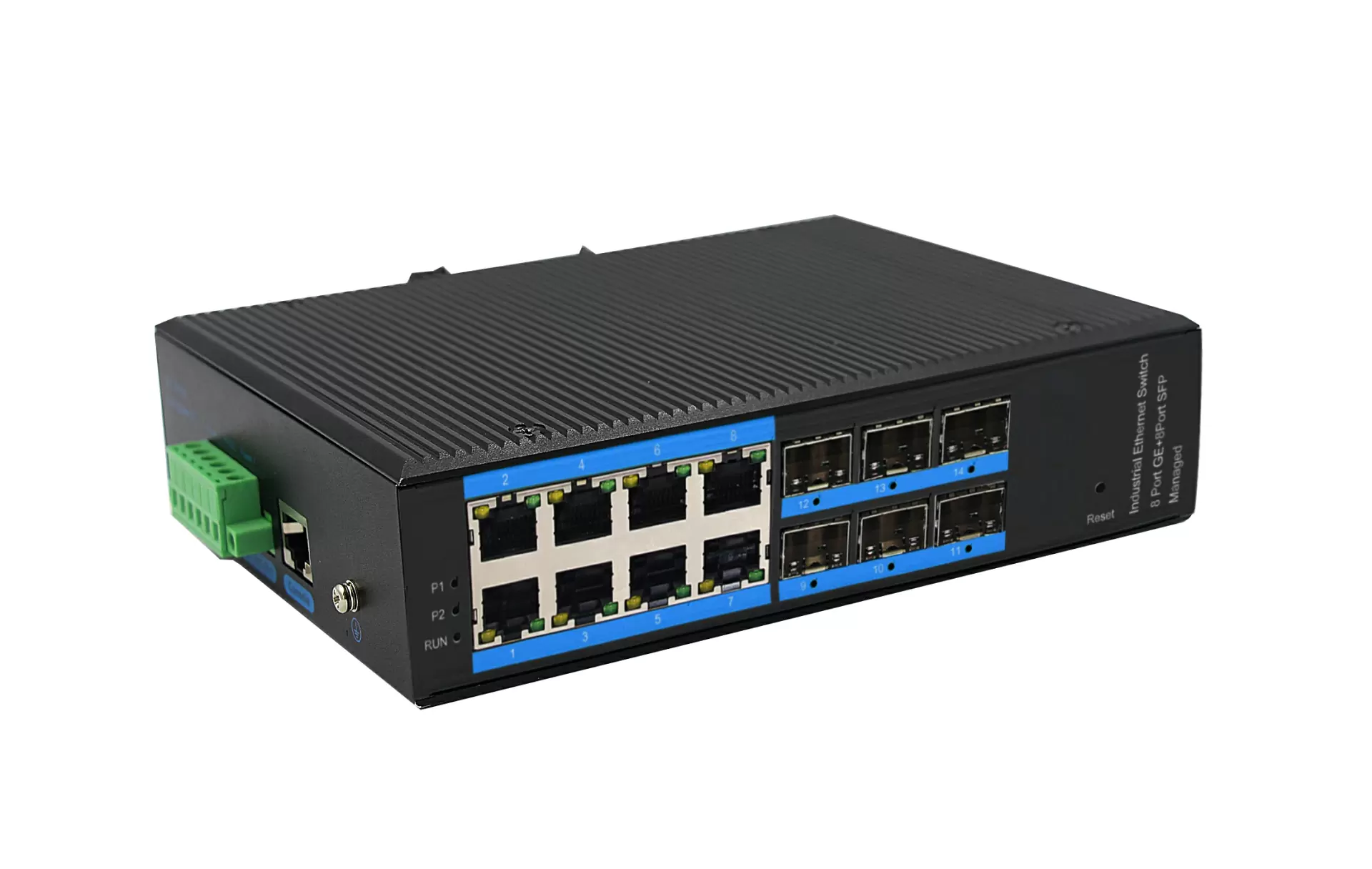

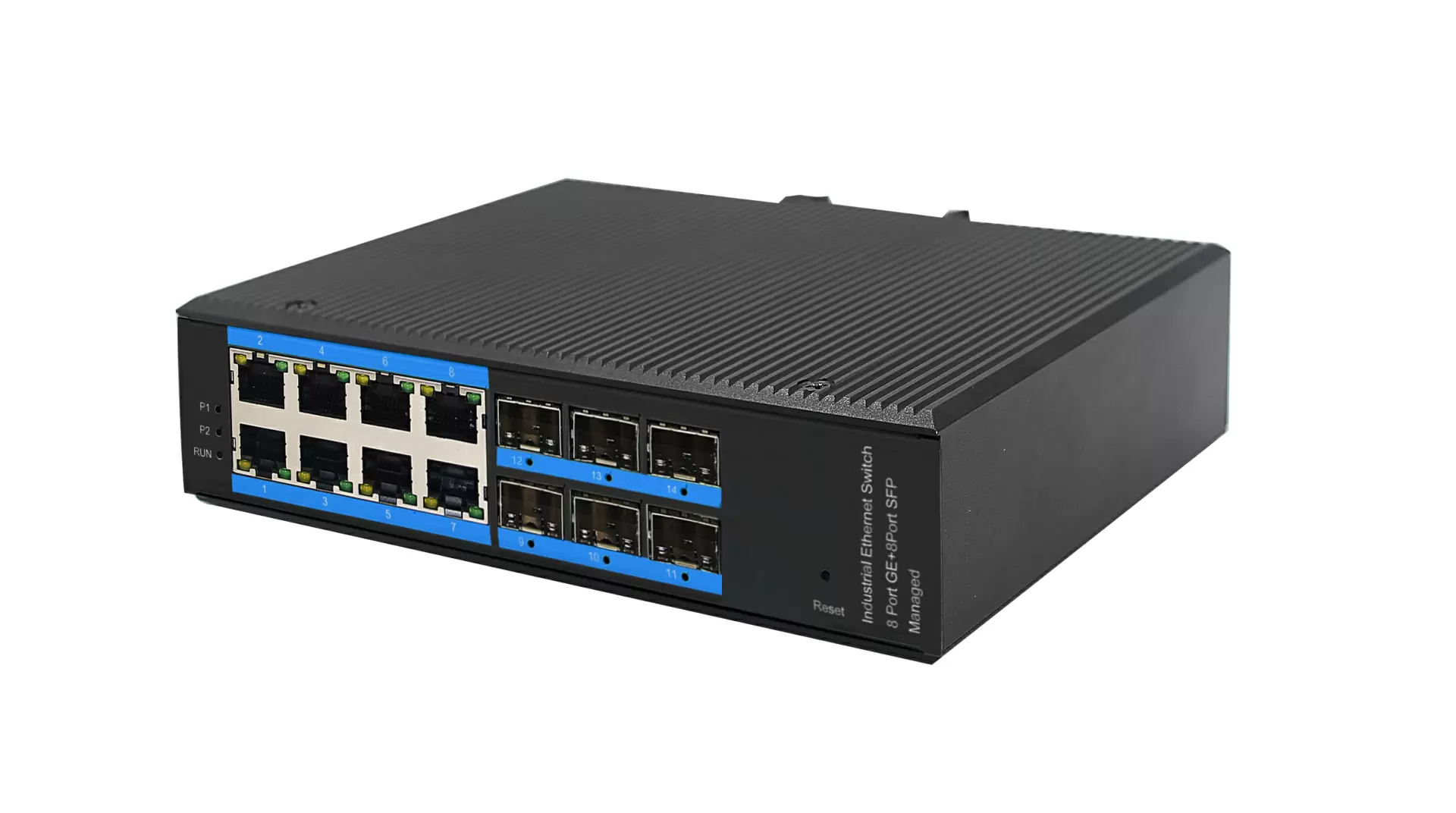

IP40 protection Industrial grade 8 port gigabit RJ45 + 6 port SFP optical ethernet switch managed L2 aggregation switch small size ZX68GS-M-SFP


Slim Type with more Practicability and Convenience


ZX68GS-M-SFP an hardened 14-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 +6G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.



The ZX68GS-M-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.


The ZX68GS-M-SFP is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Interface


• 8-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X  function

• 6-port gigabit SFP


Industrial conformance


• 12V to 52V DC, redundant power input

• -40℃ to 85℃ operating temperature

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

• DIN-rail and wall-mountable hardware design


L2 management

• Support STP/RSTP/MSTP

• Web management, CLI

• IGMP snooping, QOS,VLAN,SNMP


Specifications:


Model No.ZX68GS-M-SFP
1000Base-TX Port8 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port6G SFP Slot
 Performance SpecificationBandwidth: 56Gbps Packet Buffer Memory: 12MbitPacket Forwarding Rate: 42MppsMAC Address Table: 8K
InstallationDIN rail
Maximum Frame Size10240bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 Aluminum housing
 LED IndicatorPower: RedFiber: Link 2(Green)Ethernet: Yellow
Power Input12 to 52V DC redundant power
Power Consumption< 10W
Surge protection ± 4KV
 Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T;  IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables10BASE-T: Cat3,4,5 UTP(≤100 meter)     100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter)
  Industry StandardFCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
CertificationCE FCC Rohs compliance
MTBF>300,000hours
Dimensions (W x D x H)179×134×46mm
WeightProduct Weight: 0.82KGPacking Weight: 0.92KG
Working Environment Working temperature: -40~85℃ ;  Storage temperature: -40~85℃Relative Humidity: 5%~95 %( no condensation)
Warranty1-year replacement with new item; 3-years for main parts.
