19" rack mounted Rugged IP50 24-Port gigabit SFP optional+ 4-Port 10G SFP L3 Managed Industrial Switch, 24 port full fiber core switch telecom grade , dual power supply in AC100~240V DC36~72 ZX24

‹

›

‹

  • 19" rack mounted Rugged IP50 24-Port gigabit SFP optional+ 4-Port 10G SFP L3 Managed Industrial Switch, 24 port full fiber core switch telecom grade , dual power supply in AC100~240V DC36~72 ZX24
  • 19" rack mounted Rugged IP50 24-Port gigabit SFP optional+ 4-Port 10G SFP L3 Managed Industrial Switch, 24 port full fiber core switch telecom grade , dual power supply in AC100~240V DC36~72 ZX24

›

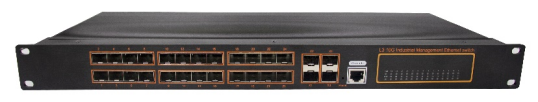

ZX24GST4-M-SFP

24-Port gigabit SFP +4-Port 10G SFP L3 Managed Industrial Switch


Rack mounted Aluminum Industrial Switch

ZX24GST4-M-SFP switch is a high performance 10G SFP+ L3 core switch. It provides Static routing and dynamic routing with advanced hardware processing capacity. The machine adopts modular design, which supports up to 4 Port 10G SFP+, and retains the expansion ability to further support 10GE when realizing gigabit convergence or access. It supports IPv4/IPv6 hardware double stack and line speed forwarding, so that customers can easily cope with the coming IPv6 era, which provides high capacity exchange capacity. ZX24GST4-M-SFP switch has the operating temperature of -40℃ ~ 85℃, has the super firmness to adapt to all kinds of harsh environment, can also be very convenient to install in the machine room cabinet. The rack-mounted characteristics and wide temperature operation make the switch a plug and play industrial-grade device, providing a reliable and convenient solution for users to network their Ethernet devices.





Strong processing ability

ZX24GST4-M-SFP switch is based on the powerful and stable

processing power of VCore-III MIPS-based CPU

ZX24GST4-M-SFP provides up to 1.2Tbps of switching capacity

port full speed filtering and forwarding 406Mpps

To ensure that the trunk network of large traffic data without blocking

Forwarding.










Specifications:

Model No.

ZX24GST4-M-SFP

Interface

24-Port 10/100/1000Mbps SFP

4-Port 10G SFP+

1-Port console



Performance Specification

Bandwidth(switch capacity): 1.2Tbps
Packet Buffer Memory:32Mbit

Packet Forwarding Rate: 406Mpps
MAC Address Table: 32K

Installation

Bracket mounted

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP50 Aluminum housing



LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

Dual Power Input

AC or DC110～240V

Power Consumption

< 35watts

Surge protection

±4KV



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;





Industry Standard

(EMC 4)

FCC CFR47 Part 15,EN55023 Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

442×195×44mm

Weight

Product Weight: 4KGS

Packing Weight: 4.5KGS

Working Environment



Working temperature: -40～85℃ ;

Storage temperature: -40～85℃

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
