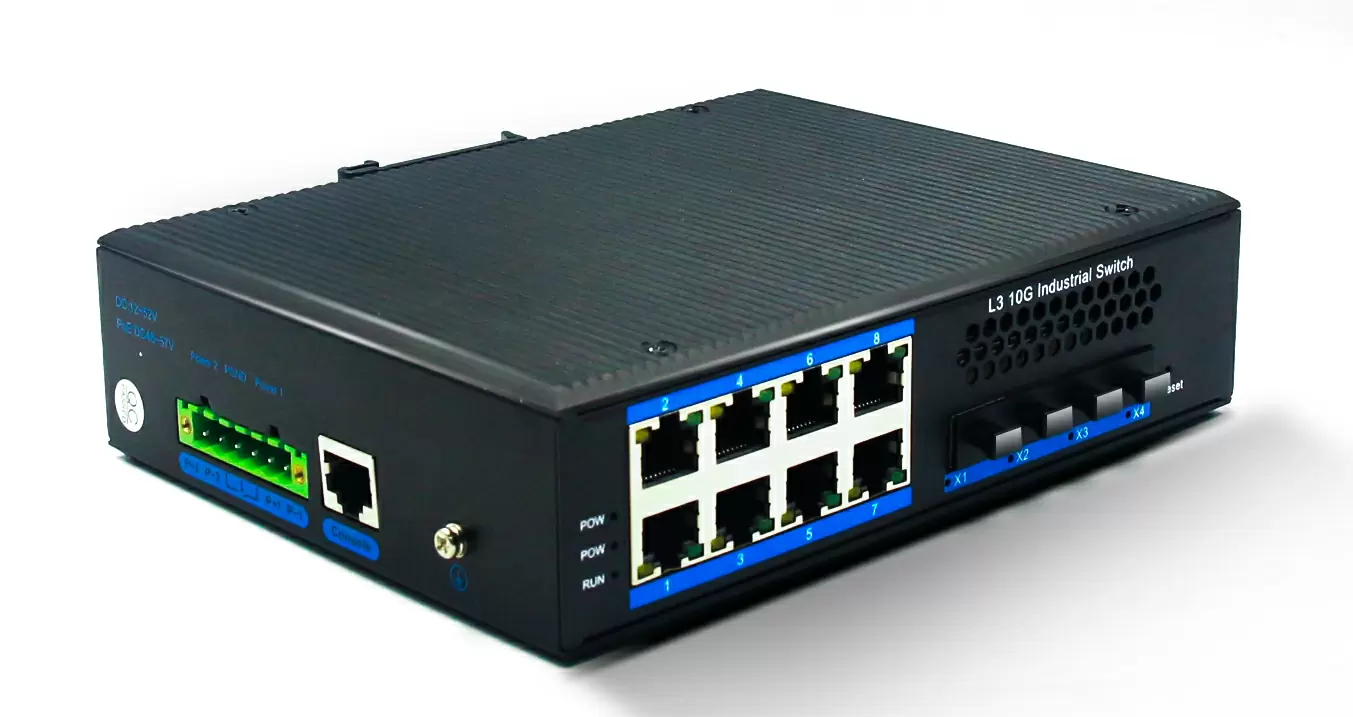

ZX48GST4-M-SFP

8 Port gigabit +4 Port 10G SFP L3 Managed Industrial Switch





Rack mounted Aluminum Industrial Switch

ZX48GST4-M-SFP switch is a high performance 8 Port gigabit + 10G SFP+ L3 core switch. It provides Static routing and dynamic routing with advanced hardware processing capacity. The machine adopts modular design, which supports up to 4 Port 10G SFP+, and retains the expansion ability to further support 10GE when realizing gigabit convergence or access. It supports IPv4/IPv6 hardware double stack and line speed forwarding, so that customers can easily cope with the coming IPv6 era, which provides high capacity exchange capacity. ZX48GST4-M-SFP switch has the operating temperature of -40℃ ~ 85℃, has the super firmness to adapt to all kinds of harsh environment, can also be very convenient to install in the machine room cabinet. The rack-mounted characteristics and wide temperature operation make the switch a plug and play industrial-grade device, providing a reliable and convenient solution for users to network their Ethernet devices.



Strong processing ability

ZX48GST4-M-SFP switch is based on the powerful and stable

processing power of VCore-III MIPS-based CPU

ZX48GST4-M-SFP provides up to 1.2Tbps of switching capacity

port full speed filtering and forwarding 406Mpps

To ensure that the trunk network of large traffic data without blocking

Forwarding.


Product features:

● Data control: Supports 802.3x full-duplex flow control and network storm suppression

● Redundant network: supports STP, RSTP, MSTP and ERPS

● Redundancy backup: supports the virtual route redundancy protocol VRRP

● Multicast management: Support IGMP Snooping V1, V2, and V3

●VLAN: supports IEEE 802.1Q vlans to effectively isolate broadcast domains

Link aggregation: Support static/dynamic link aggregation, provide perfect bandwidth utilization

●QOS: Support COSDSCP, 4 queues, support WRRSP scheduling mode

● Security management: Security management: supports ACL and 802.1x

● Management: Supports WEB, CLI, and SNMP management

Monitoring and maintenance: Support port mirroring, interface status monitoring, log management




Specifications:

Model No.

ZX48GST4-M-SFP

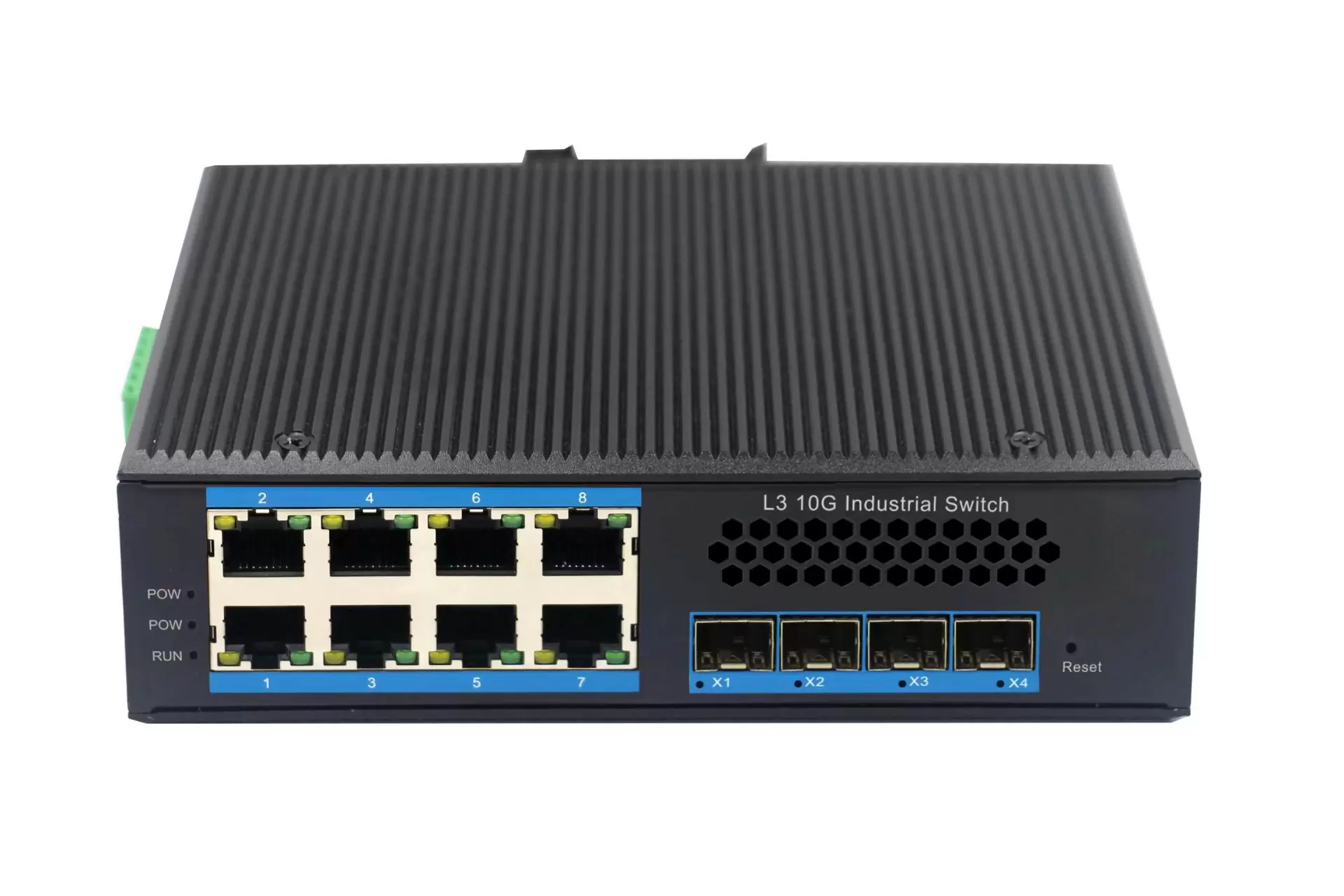

Interface

8-Port 10/100/1000Mbps RJ45

4-Port 10G SFP+ (compatible with 1000M/2500M/10000M)

1-Port console



Performance Specification

Bandwidth(switch capacity): 1.2Tbps

Packet Buffer Memory:32Mbit

Packet Forwarding Rate: 406Mpps

MAC Address Table: 32K

Installation

Bracket mounted

Maximum Frame Size

10240bytes

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 Aluminum housing



LED Indicator

POWER: Red

RUN: Green

Fiber: X1~X4(Green)

Ethernet: Green

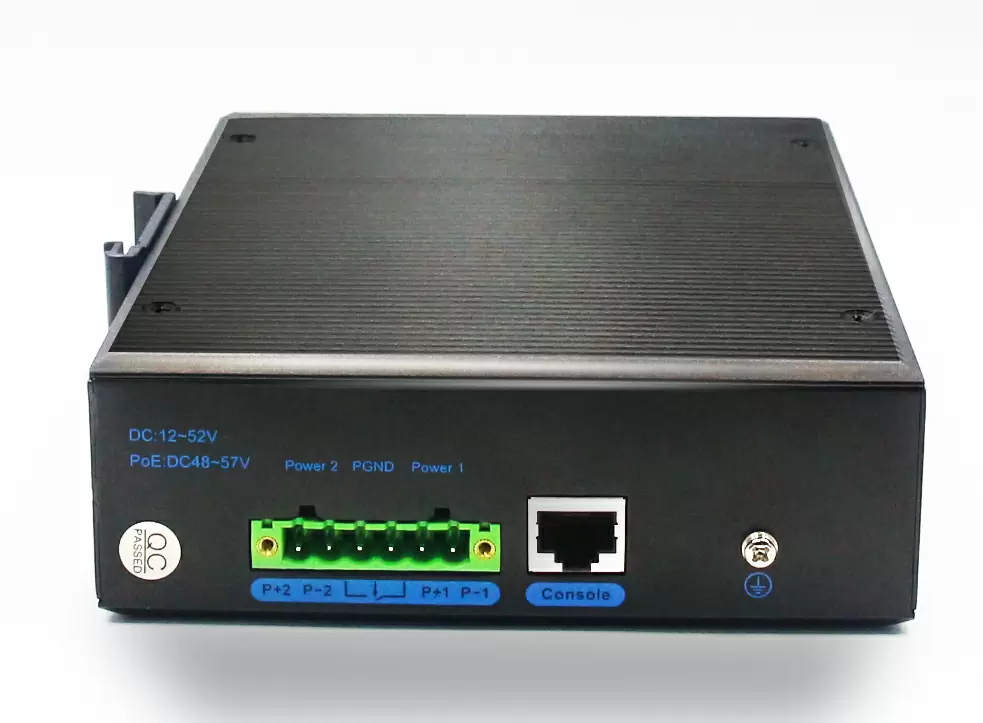

Power Input

DC 12V -52V

Power Consumption

< 18watts

Surge protection

±4KV



Network Protocols

IEEE 802.3ad, link aggregation protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE 802.3ae,10G

IEEE 802.3x, Full duplex Ethernet data link Laminar flow control

IEEE 802.3az,EEE high efficient ethernet

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)





Industry Standard

(EMC 4)

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

175.6 x 135 x45.5mm

Weight

Product Weight: 0.8KGS

Packing Weight: 0.9KGS

Working Environment



Working temperature: -40～85℃ ;

Storage temperature: -40～85℃

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
